| User Interface - Other Tabs |
|
Properties 2
- used to input the section properties in the midspan region
|
 |
| |
|

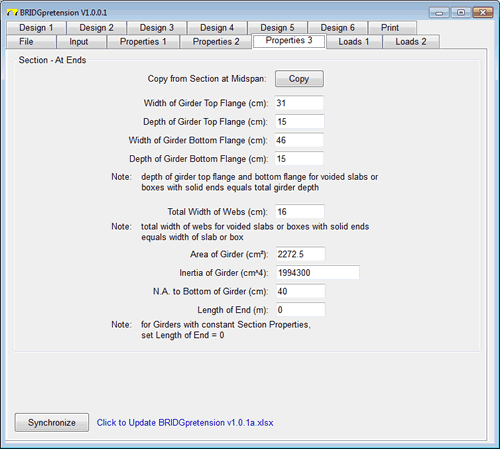

Properties 3
- used to input the section properties of the girder ends and the length of application
|
 |
| |
|
Loads 2
- ULS and FLS forces from pre-established force envelopes using BRIDGframe or equal is entered
|
 |
| |
|
Design 4
- this tab is applicable at Design Stage 2 and 4 only
- used for User defined design locations
- for ULS, SLS, and FLS design in positive and negative moment regions
- automated calculation of rebar requirements for both moment regions
|
 |
| |
|
Design 5
- this tab is used to input data for shear design
- includes proportioning of longitudinal rebar if applicable
|
 |
|
|
Design 6
- this tab is used to input data for shear interface design between girders and deck
|
 |
| |
|
